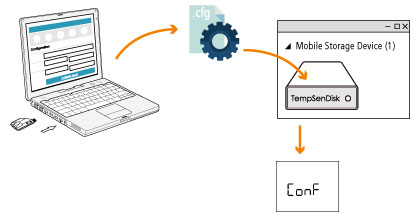

1> Configuration Online


  • Connect device to USB port on computer
  • Open www.itag4.com (This Site) in internet browser
  • Enter and choose recording parameters
  • Download Configuration File(.cfg)
  • Save it to the Removable Storage Device "TempSenDisk"
  • "ConF" on LCD indicates configuration success while USB connection remains

Configuration profile could only be applied to products of same model. Configuration profile contains Time Zone information, so please DO NOT use configuration profile in different time zone to avoid time error.

You could also configure device with TempCentre


  • Download and Install TempCentre
  • Connect device to USB port on computer
  • Start configuration

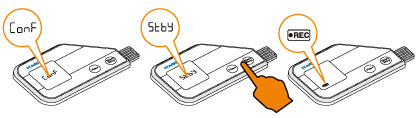

2> Start & Stop Recording


  • Press Start/Stop button for 3 seconds to start or stop recording
  • You could disable STOP button during configuration to avoid mistaken stop in transit, logger could still be stopped using TempCentre or through re-configuration.

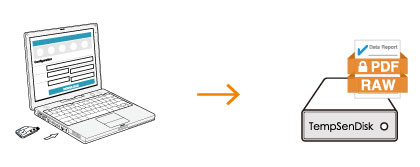

3> Downloading Data


  • Connect device to USB port on computer.
  • Copy PDF report in removable storage device "TempSenDisk" to computer.

You could also download device using TempCentre.
